Understand CIP-57 blueprints and generate TypeScript off-chain code from Aiken contracts.

Learning Objectives

By the end of this lesson, you will be able to:

Understand the CIP-57 blueprint standard
Read and interpret the preamble, validators, and definitions sections
Extract script hashes, datums, and redeemers from blueprints
Generate TypeScript off-chain code automatically
Apply parameters to compiled scripts

Prerequisites

Before starting this lesson, ensure you have:

Completed Lesson 5: Avoid Redundant Validation
An Aiken project with compiled validators
VS Code with the Cardano-Bar extension (optional but recommended)

A blueprint is a standardized JSON file defined by CIP-57. It serves as the output artifact of Cardano smart contract development, providing everything needed to interact with the contracts off-chain.

Regardless of the development method (Aiken, PlutusTx, etc.), blueprints contain:

Section	Contents
`preamble`	Meta-information about the contract (name, version, Plutus version)
`validators`	Named validators with type definitions and compiled code
`definitions`	Reusable type definitions referenced across the specification

Why Blueprints Matter

Blueprints bridge on-chain and off-chain development:

Type safety: TypeScript types can be generated from blueprint definitions
Script access: Compiled code is readily available for transactions
Documentation: Self-documenting contract interface
Interoperability: Standard format works across toolchains

Step 1: Generate a Blueprint

Build your Aiken project to generate the blueprint:

aiken build

This creates a plutus.json file in your project root.

Step 2: Understand the Preamble

The preamble section contains metadata about your contract:

{
  "preamble": {
    "title": "meshsdk/aiken-template",
    "description": "Aiken contracts for project 'meshsdk/aiken-template'",
    "version": "0.0.0",
    "plutusVersion": "v3",
    "compiler": {
      "name": "Aiken",
      "version": "v1.1.16+23061c0"
    },
    "license": "Apache-2.0"
  }
}

Key Fields

Field	Description
`title`	Project identifier
`plutusVersion`	Plutus version (v1, v2, or v3) - critical for off-chain code
`compiler`	Tool and version that generated the blueprint
`version`	Your project's semantic version

The plutusVersion is particularly important - it determines how you construct transactions and evaluate scripts.

Step 3: Understand Validators

The validators section lists each validator with its complete specification:

{
  "validators": [
    {
      "title": "spend.spending_logics_delegated.spend",
      "datum": {
        "title": "_datum_opt",
        "schema": {
          "$ref": "#/definitions/Data"
        }
      },
      "redeemer": {
        "title": "_redeemer",
        "schema": {
          "$ref": "#/definitions/Data"
        }
      },
      "parameters": [
        {
          "title": "delegated_withdrawal_script_hash",
          "schema": {
            "$ref": "#/definitions/aiken~1crypto~1ScriptHash"
          }
        }
      ],
      "compiledCode": "58ac010100229800aba2aba1aba0aab9faab9eaab9dab9a9bae002488...",
      "hash": "9c9666ddc12fc42f0151cd029c150c7d410ede9fe3885c248c8c26a0"
    }
  ]
}

Validator Fields

Field	Description
`title`	Unique identifier: `file.validator_name.purpose`
`datum`	Expected datum type (for spending scripts)
`redeemer`	Expected redeemer type
`parameters`	Script parameters that must be applied before use
`compiledCode`	Hex-encoded CBOR of the compiled script
`hash`	Script hash (28 bytes, hex-encoded)

Multi-Purpose Validators

When a validator handles multiple purposes (spend, mint, etc.), each purpose appears as a separate entry but shares the same hash:

{
  "title": "spend.spending_logics_delegated.spend",
  "hash": "9c9666ddc12fc42f0151cd029c150c7d410ede9fe3885c248c8c26a0"
},
{
  "title": "spend.spending_logics_delegated.else",
  "hash": "9c9666ddc12fc42f0151cd029c150c7d410ede9fe3885c248c8c26a0"
}

Same script, different entry points.

Step 4: Understand Definitions

The definitions section provides reusable type schemas:

{
  "definitions": {
    "Data": {
      "title": "Data",
      "description": "Any Plutus data."
    },
    "aiken/crypto/ScriptHash": {
      "title": "ScriptHash",
      "dataType": "bytes"
    },
    "cardano/assets/PolicyId": {
      "title": "PolicyId",
      "dataType": "bytes"
    },
    "withdraw/MyRedeemer": {
      "title": "MyRedeemer",
      "anyOf": [
        {
          "title": "ContinueCounting",
          "dataType": "constructor",
          "index": 0,
          "fields": []
        },
        {
          "title": "StopCounting",
          "dataType": "constructor",
          "index": 1,
          "fields": []
        }
      ]
    }
  }
}

Common Definition Types

Type	JSON Representation	Description
Bytes	`"dataType": "bytes"`	Raw byte arrays (hashes, keys)
Integer	`"dataType": "integer"`	Arbitrary precision integers
String	`"dataType": "string"`	UTF-8 strings
List	`"dataType": "list"`	Ordered collections
Constructor	`"dataType": "constructor"`	ADT variant with fields
Union	`"anyOf": [...]`	Sum type with multiple variants

Constructor Indices

For redeemers with multiple variants, the index determines the constructor number:

{
  "title": "ContinueCounting",
  "dataType": "constructor",
  "index": 0,           // ConStr0
  "fields": []
},
{
  "title": "StopCounting",
  "dataType": "constructor",
  "index": 1,           // ConStr1
  "fields": []
}

When building transactions, use mConStr0([]) for ContinueCounting and mConStr1([]) for StopCounting.

Step 5: Generate TypeScript Code

Option 1: VS Code Extension (Recommended)

Use the Cardano-Bar VS Code extension:

Create a new TypeScript file (e.g., offchain.ts)

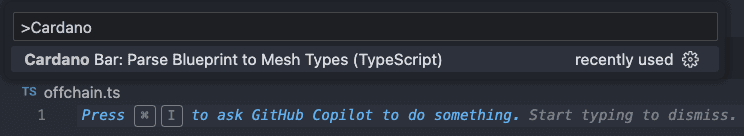

Open the command palette (Ctrl+Shift+P or Cmd+Shift+P)
Type Parse blueprint to Typescript - Mesh and select it

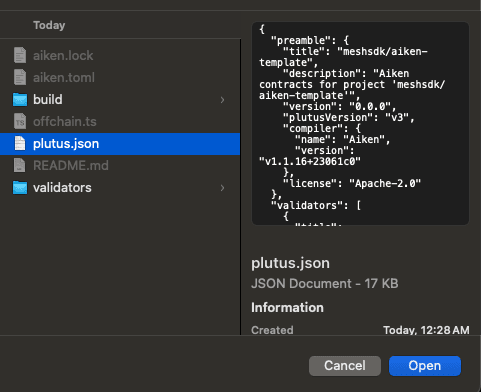

Select your plutus.json file

The extension generates a complete TypeScript module with:

Type definitions for datums and redeemers
Functions to get script code and addresses
Parameter application helpers

Option 2: Manual Implementation

Extract information directly from the blueprint:

import {
  applyParamsToScript,
  resolveScriptHash,
  serializePlutusScript,
} from "@meshsdk/core";

// Load the blueprint
import blueprint from "./plutus.json";

// Get the validator entry
const spendValidator = blueprint.validators.find(
  (v) => v.title === "spend.spending_logics_delegated.spend"
);

// Extract compiled code
const compiledCode = spendValidator.compiledCode;

// Apply parameters if needed
const withdrawalScriptHash = "9c9666ddc12fc42f0151cd029c150c7d410ede9fe3885c248c8c26a0";
const parameterizedScript = applyParamsToScript(compiledCode, [
  withdrawalScriptHash,
]);

// Get the script hash (policy ID for minting scripts)
const scriptHash = resolveScriptHash(parameterizedScript, "V3");

// Get the script address (for spending scripts)
const { address } = serializePlutusScript(
  { code: parameterizedScript, version: "V3" },
  undefined,  // stake credential
  "preprod"   // network
);

Step 6: Use Generated Code in Transactions

Building Datums

Construct datums matching the blueprint schema:

import { mConStr0, integer, byteString } from "@meshsdk/core";

// For a datum with count field
const spendingDatum = mConStr0([
  integer(0),  // count
]);

// For a complex oracle datum
const oracleDatum = mConStr0([
  byteString(appOwnerKeyHash),      // app_owner
  integer(1000),                     // app_expiry
  mPubKeyAddress(keyHash, stakeHash), // spending_validator_address
  byteString(policyId),              // state_thread_token_policy_id
]);

Building Redeemers

Match the constructor index from definitions:

// ContinueCounting (index 0)
const continueRedeemer = mConStr0([]);

// StopCounting (index 1)
const stopRedeemer = mConStr1([]);

Complete Transaction Example

import { BlockfrostProvider, MeshTxBuilder } from "@meshsdk/core";
import { getScript, getScriptHash, getDatum, getRedeemer } from "./offchain";

const provider = new BlockfrostProvider("YOUR_API_KEY");
const txBuilder = new MeshTxBuilder({ fetcher: provider });

// Get script information
const script = getScript("spend.spending_logics_delegated");
const scriptAddress = getScriptAddress("spend.spending_logics_delegated");

// Build transaction
const unsignedTx = await txBuilder
  .spendingPlutusScriptV3()
  .txIn(utxo.input.txHash, utxo.input.outputIndex)
  .txInInlineDatumPresent()
  .txInRedeemerValue(getRedeemer("ContinueCounting"))
  .txInScript(script.code)
  .txOut(outputAddress, outputValue)
  .changeAddress(walletAddress)
  .selectUtxosFrom(wallets)
  .complete();

Complete Working Example

Generated offchain.ts

import {
  applyParamsToScript,
  resolveScriptHash,
  serializePlutusScript,
  mConStr0,
  mConStr1,
  integer,
} from "@meshsdk/core";

// Import your blueprint
import blueprint from "./plutus.json";

// Type definitions
export type SpendingValidatorDatum = {
  count: number;
};

export type MyRedeemer = "ContinueCounting" | "StopCounting";

// Get validator by title
function findValidator(title: string) {
  const validator = blueprint.validators.find((v) => v.title.startsWith(title));
  if (!validator) throw new Error(`Validator ${title} not found`);
  return validator;
}

// Get parameterized script
export function getScript(validatorName: string, params: string[] = []) {
  const validator = findValidator(validatorName);
  let code = validator.compiledCode;

  if (params.length > 0) {
    code = applyParamsToScript(code, params);
  }

  return {
    code,
    hash: resolveScriptHash(code, "V3"),
  };
}

// Get script address
export function getScriptAddress(
  validatorName: string,
  params: string[] = [],
  network: "mainnet" | "preprod" = "preprod"
) {
  const script = getScript(validatorName, params);
  const { address } = serializePlutusScript(
    { code: script.code, version: "V3" },
    undefined,
    network
  );
  return address;
}

// Build datum
export function buildDatum(datum: SpendingValidatorDatum) {
  return mConStr0([integer(datum.count)]);
}

// Build redeemer
export function buildRedeemer(action: MyRedeemer) {
  switch (action) {
    case "ContinueCounting":
      return mConStr0([]);
    case "StopCounting":
      return mConStr1([]);
  }
}

Usage in Application

import { getScript, getScriptAddress, buildDatum, buildRedeemer } from "./offchain";

// Get script with parameter
const withdrawalScriptHash = "abc123...";
const script = getScript("spend.delegating_spend", [withdrawalScriptHash]);

// Get address
const address = getScriptAddress("spend.delegating_spend", [withdrawalScriptHash]);

// Build datum and redeemer for transaction
const datum = buildDatum({ count: 0 });
const redeemer = buildRedeemer("ContinueCounting");

Key Concepts Explained

Parameter Application

Scripts with parameters in the blueprint require values before use:

// Blueprint shows parameter:
// "parameters": [{ "title": "oracle_nft", "schema": { "$ref": "#/definitions/PolicyId" }}]

// Apply the parameter
const parameterizedScript = applyParamsToScript(compiledCode, [oracleNftPolicyId]);

Applying parameters creates a new script with a new hash.

Schema References

The $ref syntax points to definitions:

"schema": { "$ref": "#/definitions/aiken~1crypto~1ScriptHash" }

The ~1 is JSON Pointer encoding for /, so this references definitions["aiken/crypto/ScriptHash"].

Exercises

Parse a complex blueprint: Create a vesting contract with owner and beneficiary fields. Generate the TypeScript types and verify they match.
Multi-validator project: Build a project with minting and spending validators. Use the blueprint to coordinate them in a single transaction.
Automated testing: Write a script that validates your off-chain code matches the blueprint definitions.

Next Steps

You have learned:

The structure of CIP-57 blueprints
How to read preamble, validators, and definitions
How to generate TypeScript code from blueprints
How to use generated code in transactions

In the next lesson, you build a vesting contract that locks funds until a specified time.
